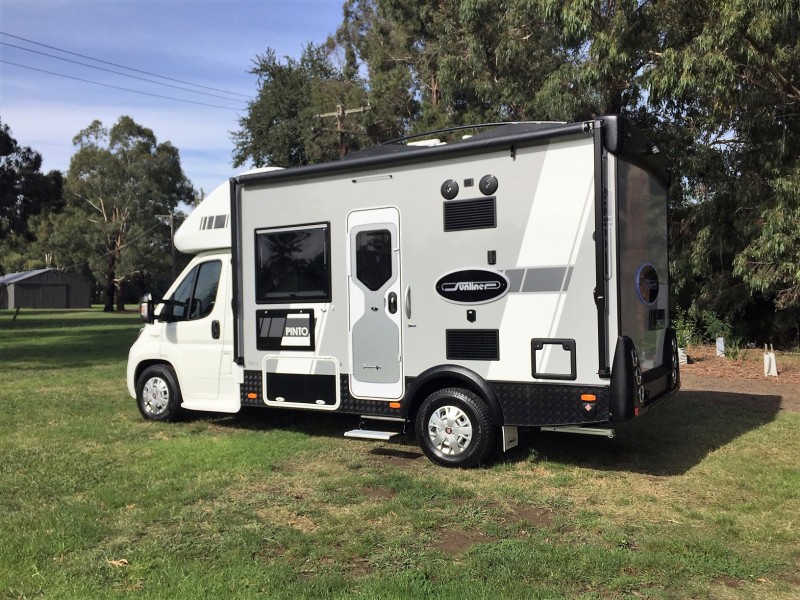

Exclusive to Sunliner Motor Homes, the Pinto range offers four unique floor plans that are compact yet very functional for both long and short term travel.

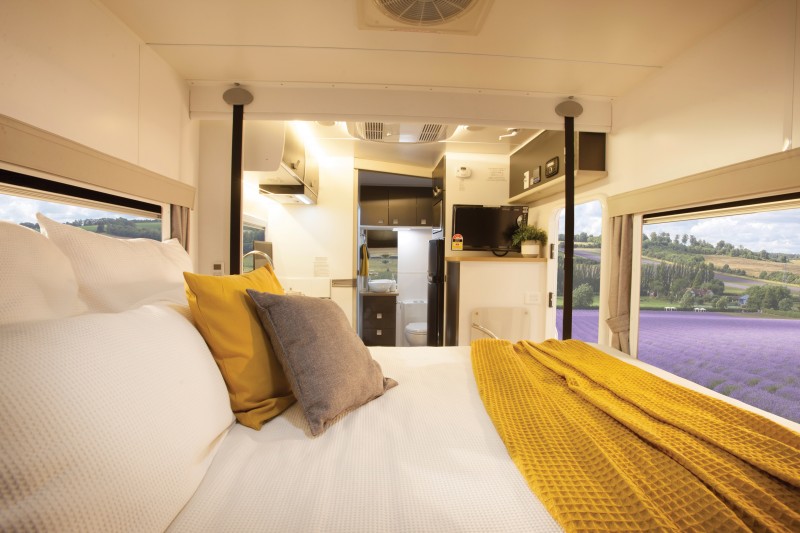

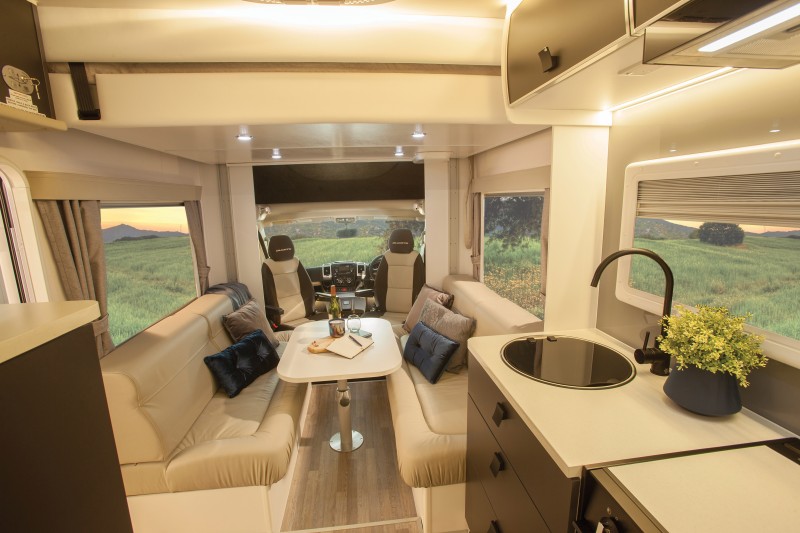

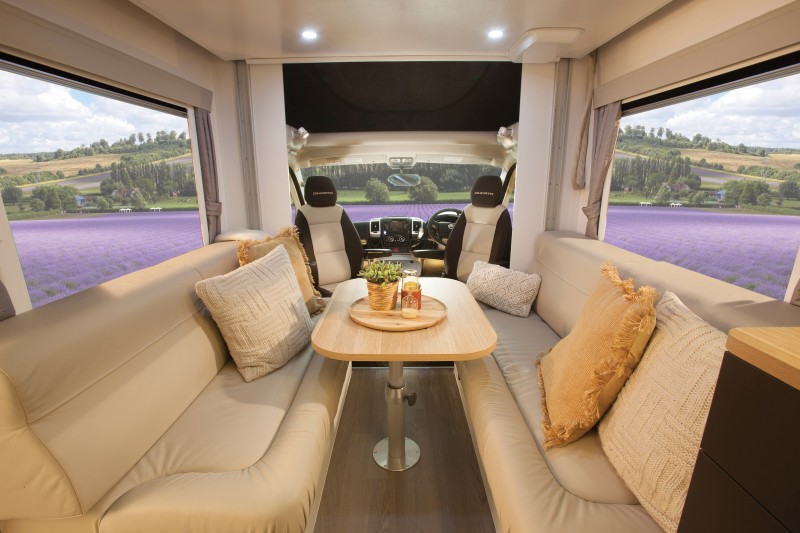

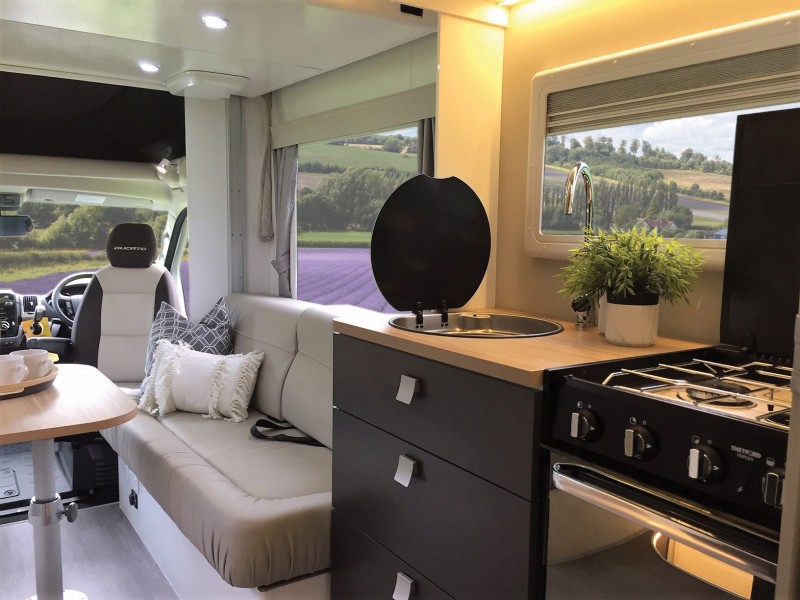

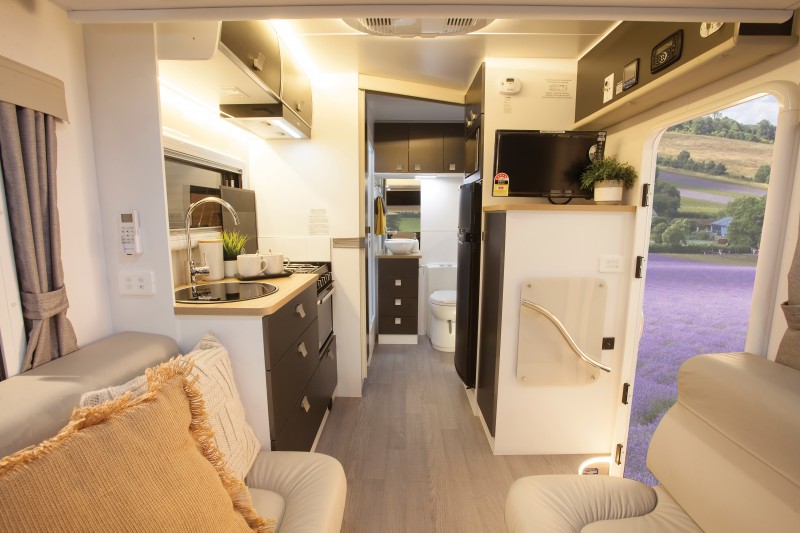

The Pinto range is approximately five inches narrower than the standard width motorhome but once inside, this is barely noticeable thanks to the clever designs. From electric drop down beds to the spacious lounge areas right through to the well equipped kitchens, you can truly escape on the trip of your lifetime and enjoy the lifestyle you want to live at your own pace.

A common misconception that people have is that a reduction in size means a reduction in luxuries but that certainly isn't the case with the Pinto range. The Pinto demonstrates that it's possible to get a motorhome that is considerably shorter yet still offers all the necessary features for fully equipped motorhome travel.

With six different chassis options available, you can choose from the Fiat Ducato X295, Iveco Daily 35C, Iveco Daily 45C17, Iveco Daily 50C17 or the Renault Master X62. All of these chassis are available in Automatic or manual transmissions and come with all the features found in a late model sedan.


Pinto Floor Plans, Videos & 3D Tours

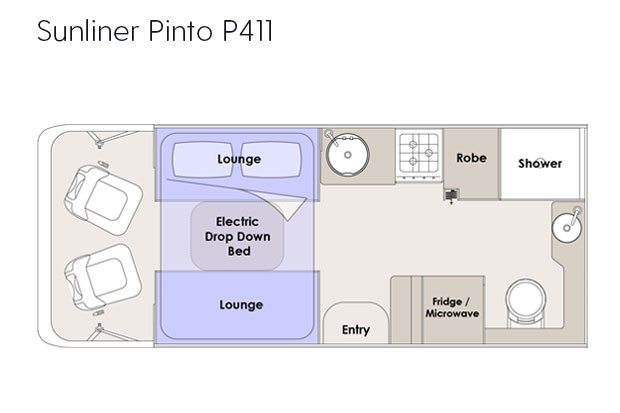

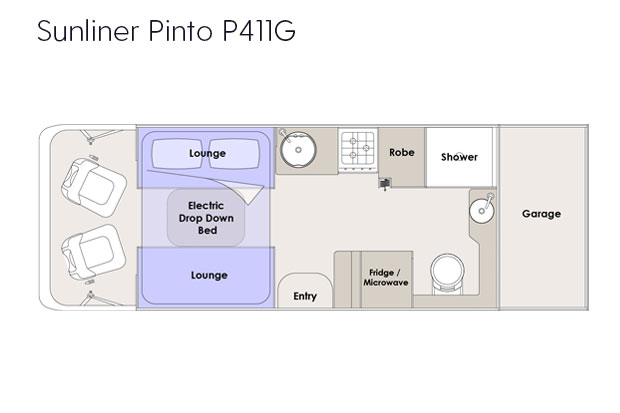

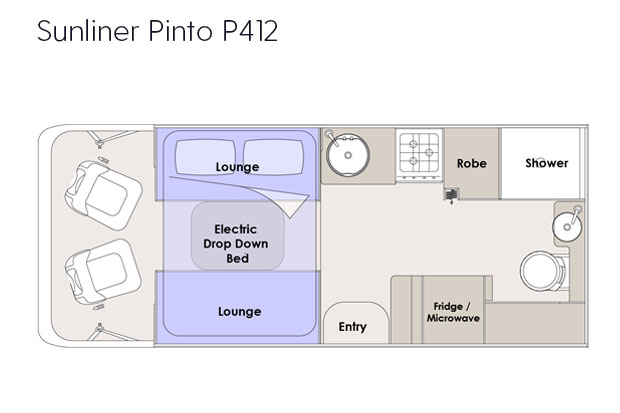

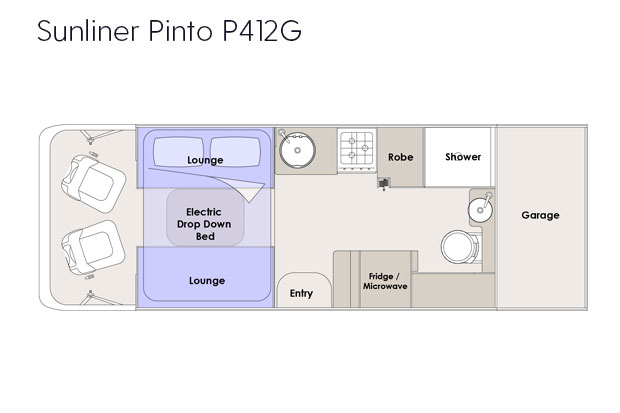

Pinto Floor Plans


click on a floor plan to enlarge

Pinto Video

Pinto 412 Virtual Tour

Pinto Specifications

Click to expand and minimise.

  • Blockout Window Thermal Blind Set
  • Driver & Passenger Swivel Seat
  • Reverse Camera + Rear View
  • Air Conditioner
  • Diesel Heater 2 KVA
  • Roof FAN Bathroom Hatch
  • Roof FAN Hatch
  • 12V Battery Management System
  • Battery 110aH AGM
  • Double USB + 12v Socket Surface Mount
  • Double USB Small Flush Mount
  • External 240 Power Inlet
  • External 240 Power Outlet
  • 1x Solar Panel 160w
  • External Speakers
  • Stereo
  • TV Antenna
  • TV 24' Internal
  • Electric Awning
  • Entry Step Electric
  • Entry Door with Security Screen
  • External Entry Handle Illuminated
  • External Table Aluminium
  • Roof Bars
  • Sunliner Mud Flaps
  • Internal Entry Handle

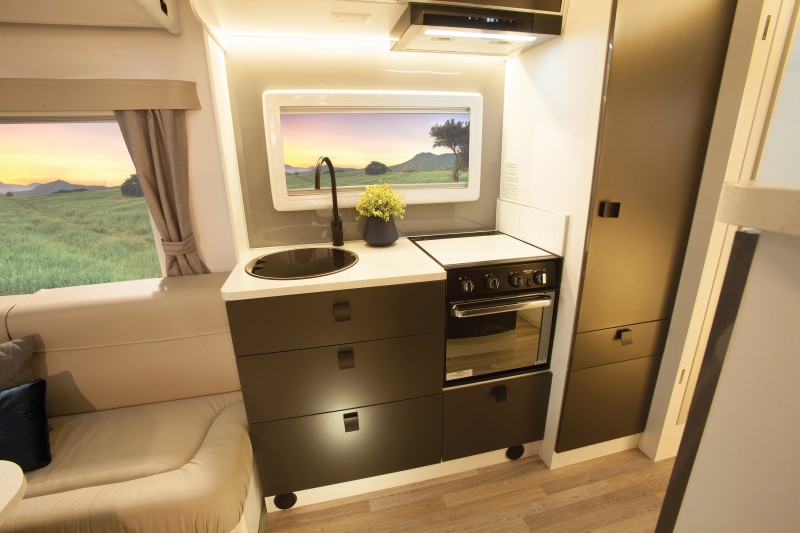

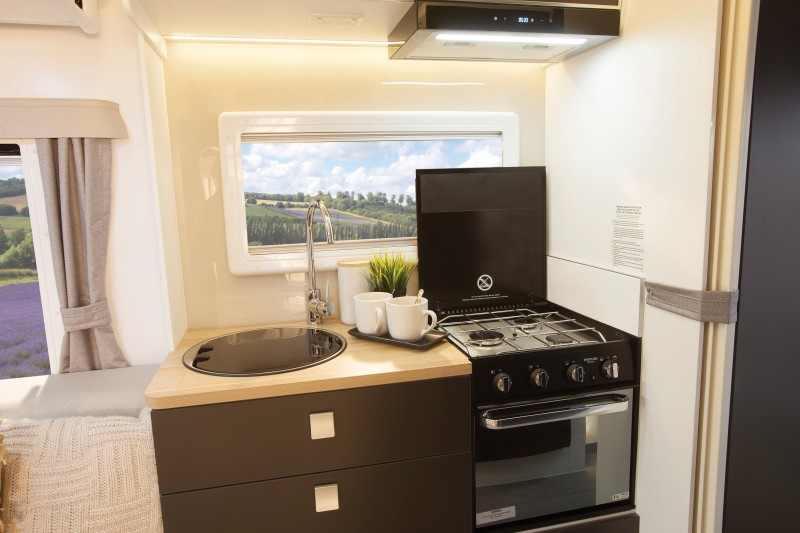

  • 3 Gas Burner + Oven And Grill Combo
  • Fridge - 3 Way: 175 Lt
  • Microwave
  • Rangehood
  • Sink Round With Lid
  • Splashback
  • Boot Light With Switch
  • LED Strip In Step Well
  • Reading Lights
  • Double

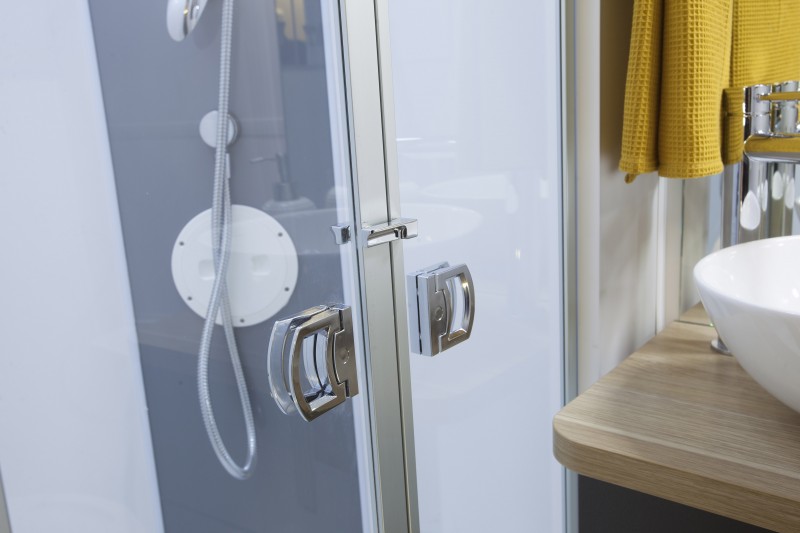

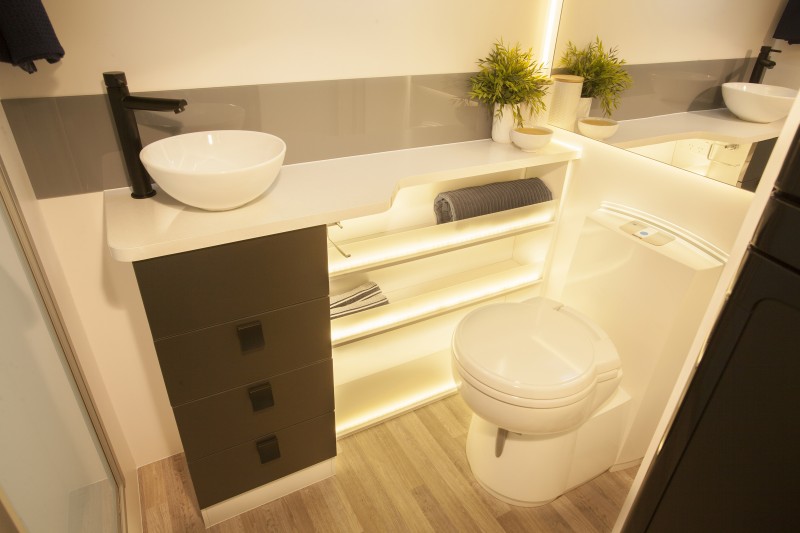

  • Bathroom Vanity Sink
  • External Gas Bayonet
  • External Mains City Water
  • External Shower
  • External Water Filler
  • X2 Gas Bottles 4kg
  • Hot Water Service Gas + Electric
  • Toilet Ceramic
  • Water Pump
  • Tank Fresh: 150 Lt
  • Tank Waste: 50 Lt
  • Fire Extinguisher
  • Internal Carbon Monoxide Alarm
  • Internal Gas Detector Alarm
  • Internal Smoke Alarm
  • Internal Step Carpet Mat Sunliner
  • Cabin Seat Trim Inserts
Fiat Ducato X295 - 180hp

Available on P411G & P412G models.

  • Engine: 2.3 TD
  • Power (hp/kw): 177 / 130
  • Torque (Nm): 400
  • GVM (kg): 4440kg
  • Transmission: 6 Speed Auto
  • Fuel Tank Capacity (Litres): 90
  • Driven Wheels: Front
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years/Km's): 3 / 200,000

Iveco Daily 35C

Available on P411G & P412G models.

  • Engine: 2.87 Turbo Diesel
  • Power (hp/kw): 126 / 93
  • Torque (Nm): 320
  • GVM (kg): 3800kg
  • Gear: 8 Speed Auto
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: Rear
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years/Km's): 3 / 200,000

Iveco Daily 45C17

Available on all models.

  • Engine: 3.0 Turbo Diesel
  • Power (hp/kw): 170 / 125
  • Torque (Nm): 430
  • GVM (kg): 4495kg
  • Gear: 8 Speed Auto
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: Rear Dual
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years/Km's): 3 / 200,000

Iveco Daily 50C17

Available on all models.

  • Engine: 3.0 Turbo Diesel
  • Power (hp/kw): 170 / 125
  • Torque (Nm): 430
  • GVM (kg): 4495kg / 5200kg
  • Gear: 8 Speed Auto
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: Rear Dual
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years/Km's):  3 / 200,000

Renault Master X62 FWD

Available on all models.

  • Engine: 2.3L TD
  • Power (hp/kw): 148 / 110
  • Torque (Nm): 350
  • GVM (kg): 3800kg
  • Transmission: 6 Speed Auto
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: Front
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years/Km's): 3 / 200,000

* Due to continuous improvement, the specifications listed above may vary and are subject to change without notice.
