Introducing the Sunliner Habitat, a brand new mixed-terrain, long range touring RV designed so that you can go further and stay longer.

Go Further, Stay Longer

The Sunliner Habitat is a long-range, multi-terrain, touring motorhome designing for the serious RV traveller.  If you want to travel further, camp more remotely and stay longer, all with a level of luxury, security and ease of use that a motorhome can provide, then the Habitat is your RV.

So Easy

Just because you want to unplug and get away from it all doesn’t mean you can’t be comfortable, secure and take a few luxuries with you. The Habitat is easy to drive and to use, no heavy lifting, hitching or messing about. With electric stabilisers, awning and entry step, you can move through to your motorhome and set up and enjoying your first beverage in under 2 minutes.


Habitat Floor Plans, Videos & 3D Tours

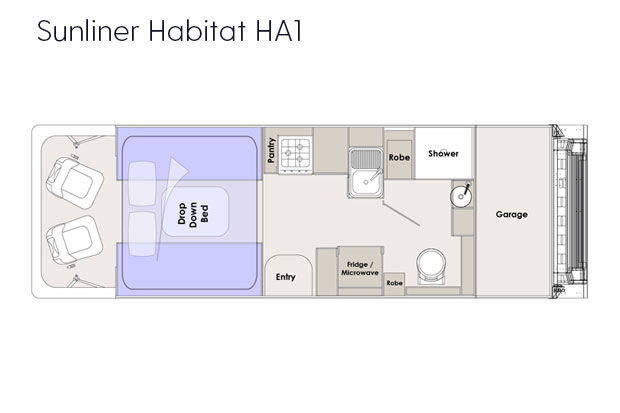

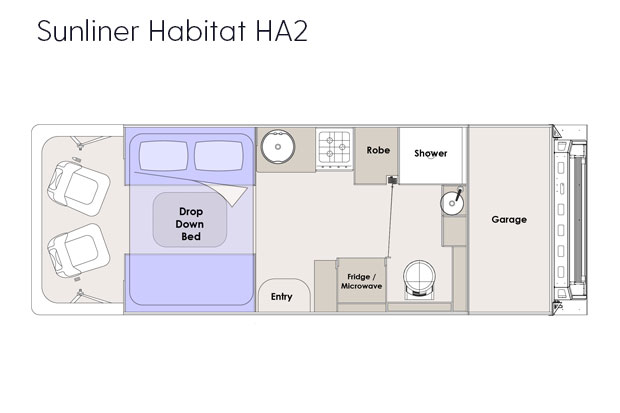

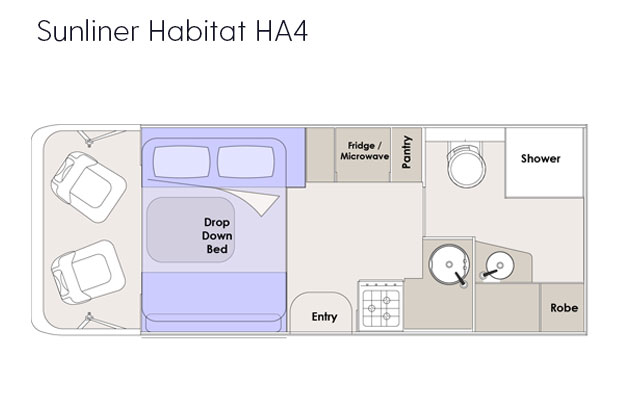

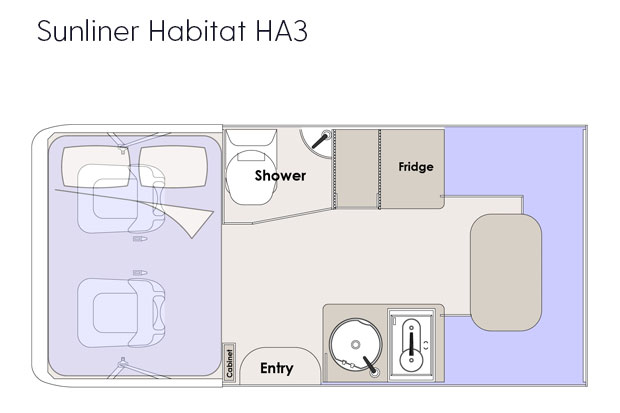

Habitat Floor Plans


click on a floor plan to enlarge

Habitat Video

click below to expand and minimise each video.

Habitat Virtual Tour

click below to expand and minimise each virtual tour.

Habitat Specifications

Click to expand and minimise.

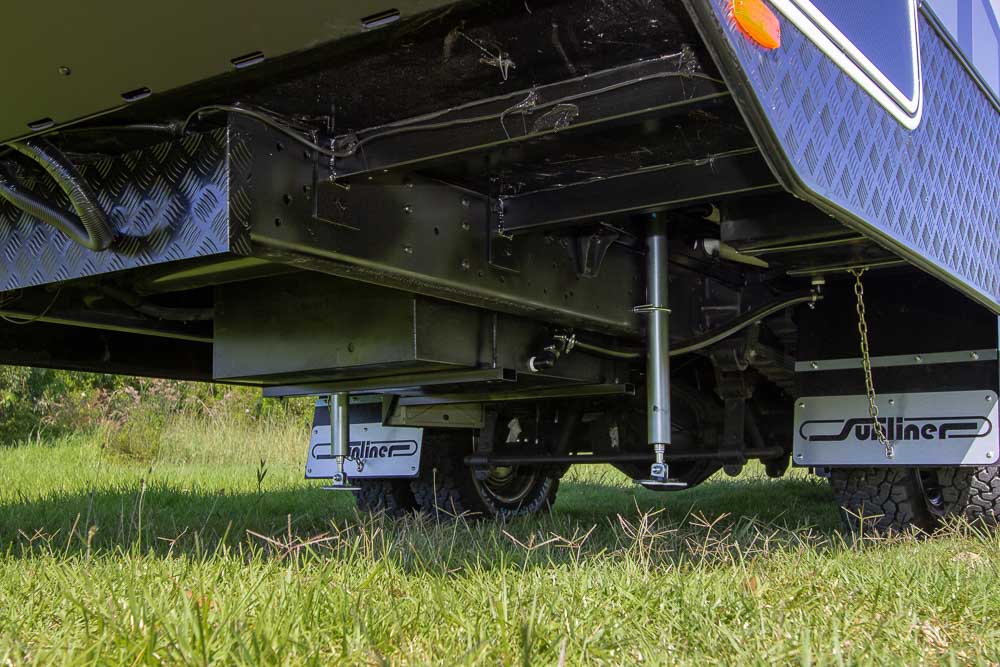

  • 12v Electric Ram Jack Stabilizers (HA1 & HA2 only)
  • All Terrain Tyre UPGRADE
  • Blockout Window Thermal Blind Set
  • Driver & Passenger Swivel Seat (HA1, HA2 & HA4 only)
  • DVR Forward Facing Camera Recorder
  • Front Protection Bar
  • In Dash GPS (HA1, HA2 & HA3 only)
  • Iveco 210lt Fuel Tank Upgrade (HA1 only)

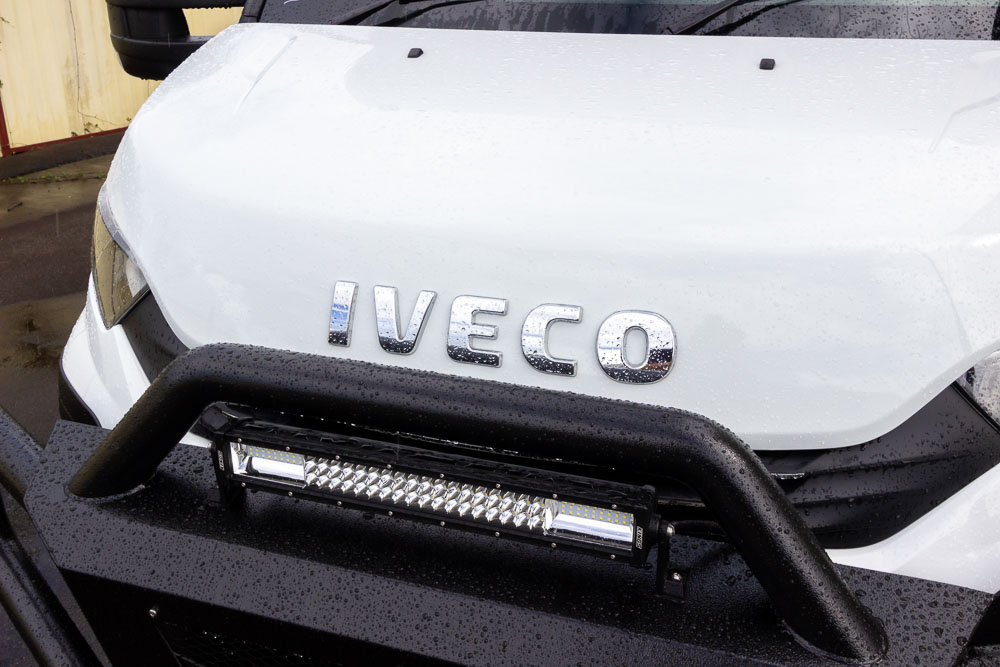

  • Light Bar
  • Reverse Camera
  • Tow Bar Provision (HA1, HA2 & HA4 only)
  • UHF CB Radio
  • Air Conditioner
  • Diesel Heater 2 KVA
  • Roof FAN Bathroom Hatch
  • Roof FAN Hatch (HA1 & HA2 only)

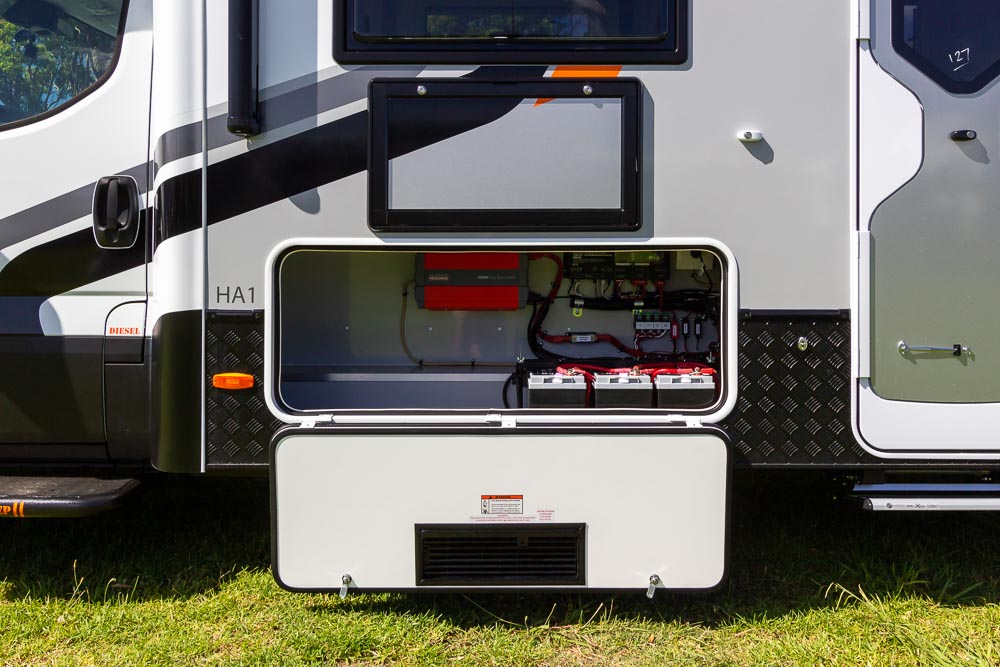

  • 12V Battery Management System

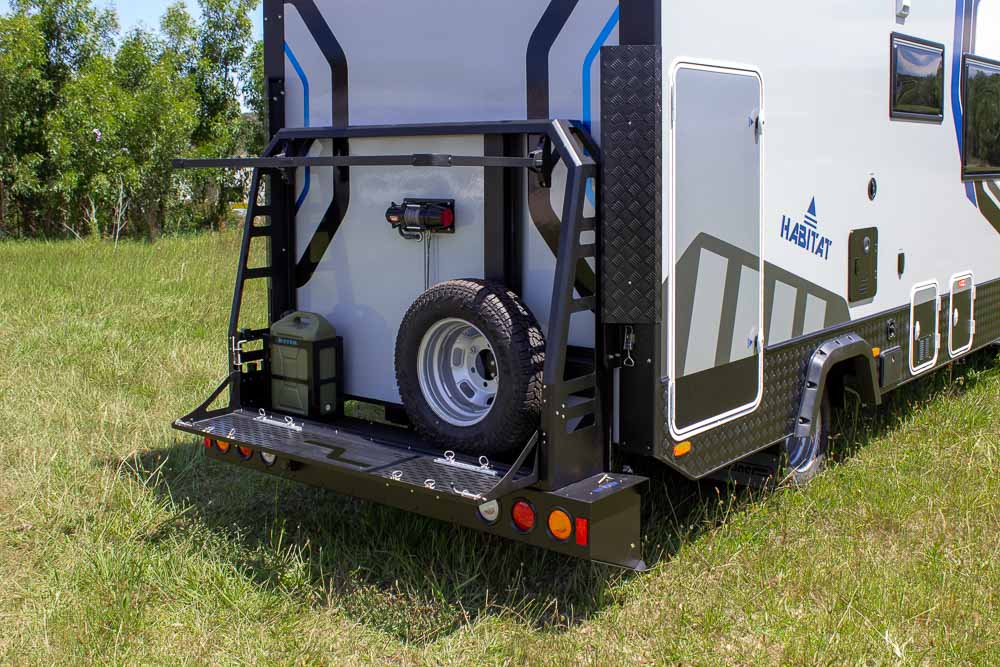

  • 12v Winch (HA1, HA2 & HA4 only)
  • Battery 135aH LITHIUM x 3 (HA3 x 2)
  • External 240 Power Inlet
  • External 240 Power Outlet
  • Generator 3.6 KVA (HA1 only)
  • Inverter 3000w Pure Sign Wave (HA1 & HA2)
  • Inverter 2000w Pure Sign Wave (HA3 & HA4)
  • Solar Panel 160w
HA1 x 3
HA2 x 2
HA3 x 1
HA4 x 2
  • External Speakers
  • Stereo
  • TV Antenna
  • TV 24' Internal
  • Electric Awning (HA1, HA2 & HA4)
  • Windout Awning (HA3)
  • Entry Door with Security Screen
  • Checkerplate Skirts
  • Entry Step Electric (HA1, HA2 & HA3)
  • Entry Step Electric Double (HA4)
  • External Entry Handle Illuminated
  • Roof Bars
  • Utility Bar (HA1, HA2 & HA4)
  • Internal Entry Handle
  • Positive Catch Handles
  • Bunk Net (HA3 only)

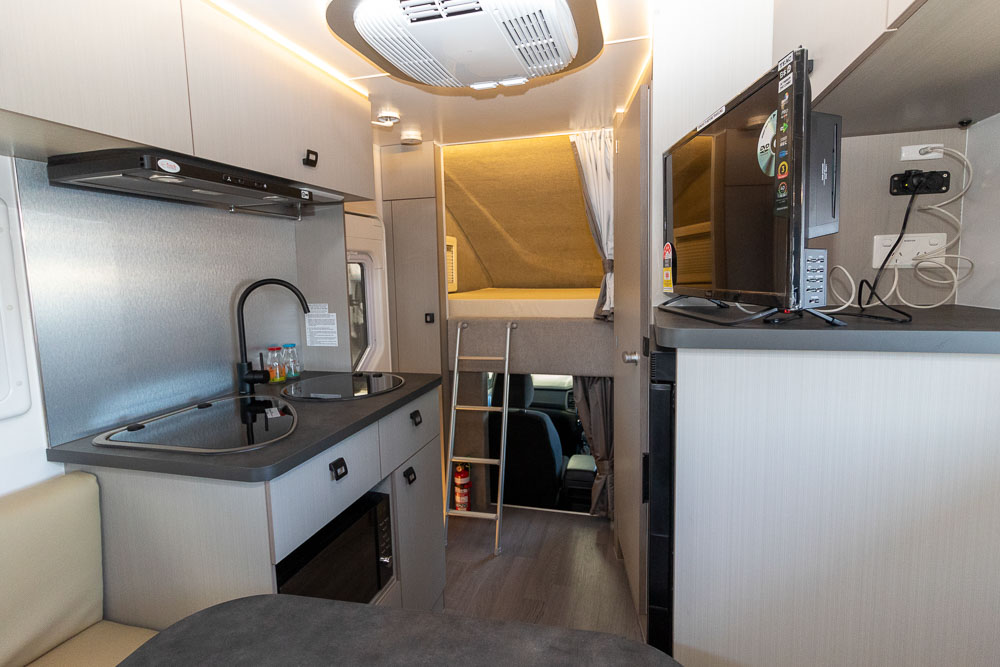

  • Ladder (HA3 only)

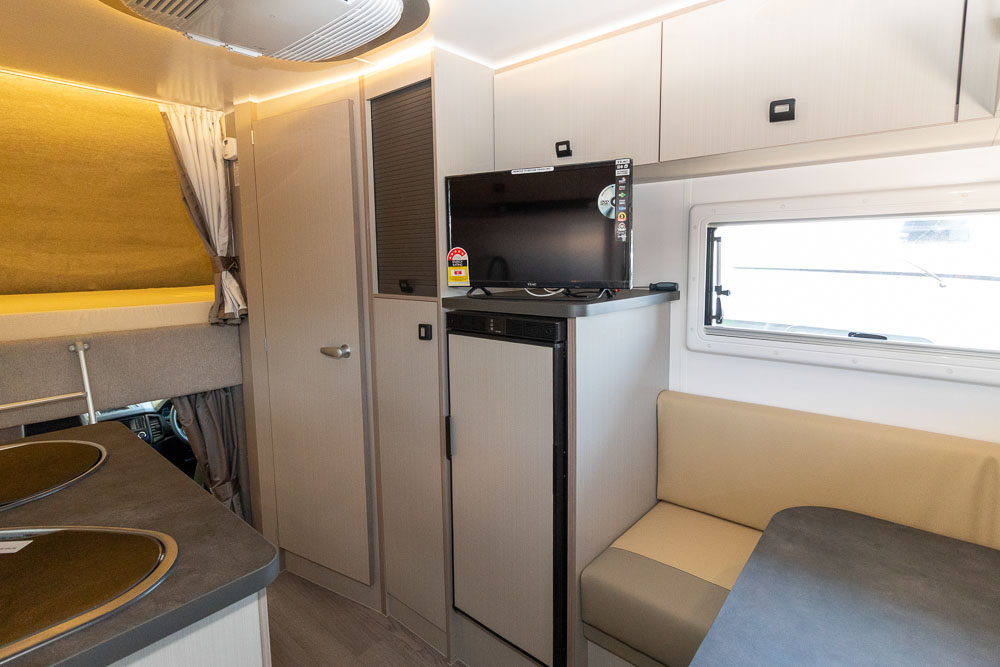

  • Fridge - 2 Way
HA1 - 185 Lt
HA2 - 185 Lt
HA3 - 90 Lt
HA4 - 152Lt

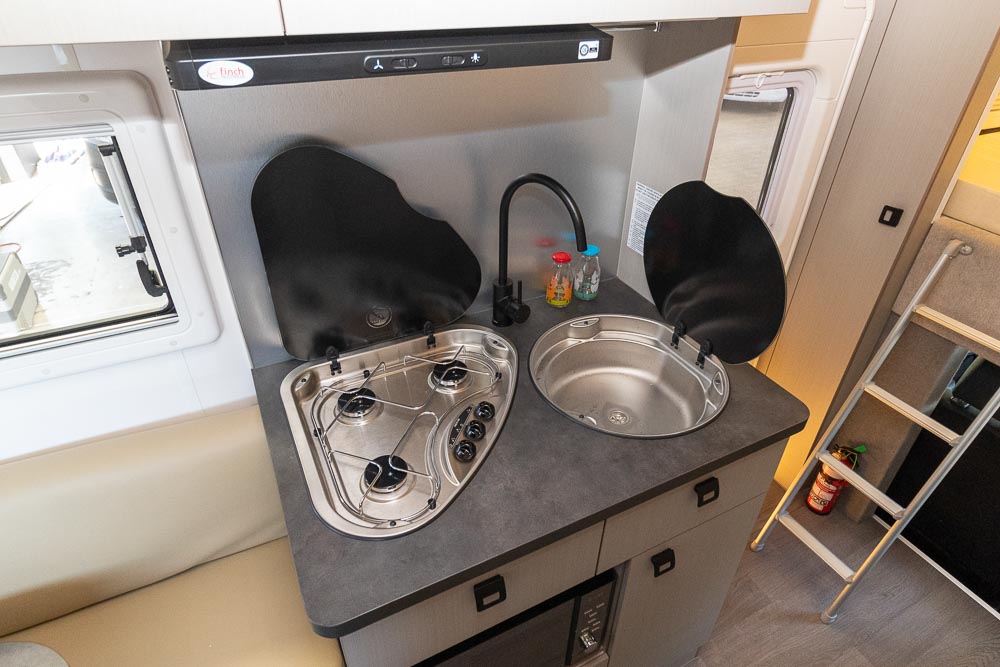

  • 3 Burn Gas Cooker (HA3 only)

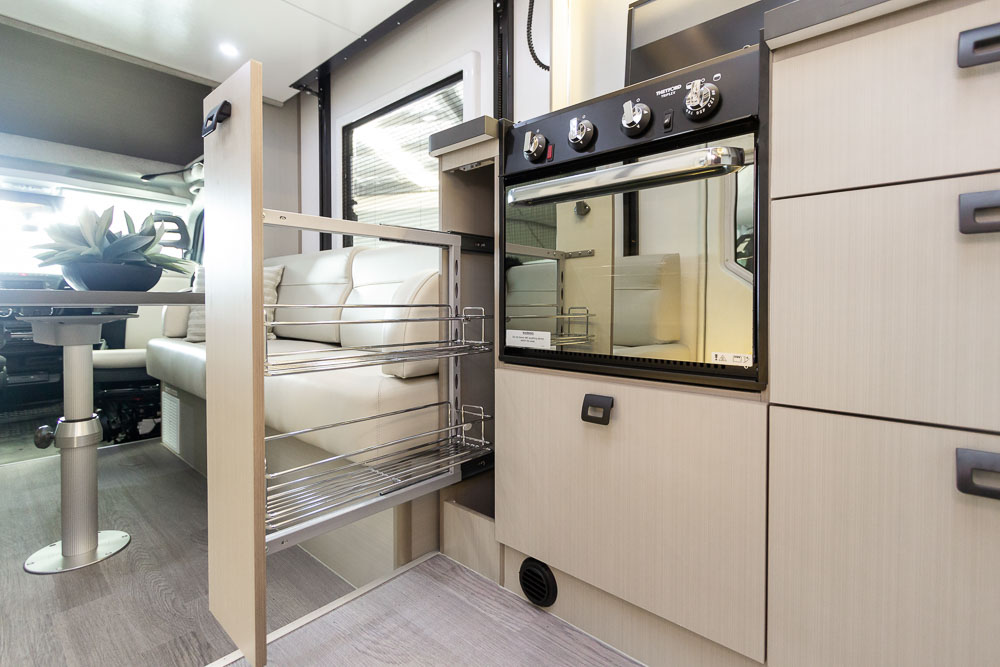

  • 3 Gas Burner + Oven And Grill Combo (HA1, HA2 & HA4)
  • Microwave
  • Rangehood
  • Sink Round With Lid (HA2, HA3 & HA4)
  • Sink Stainless (HA1 & HA4 only)
  • Splashback
  • Water Purifier With Seperate Tap
  • External Security Lighting Roof Light Bar
  • LED Strip In Step Well

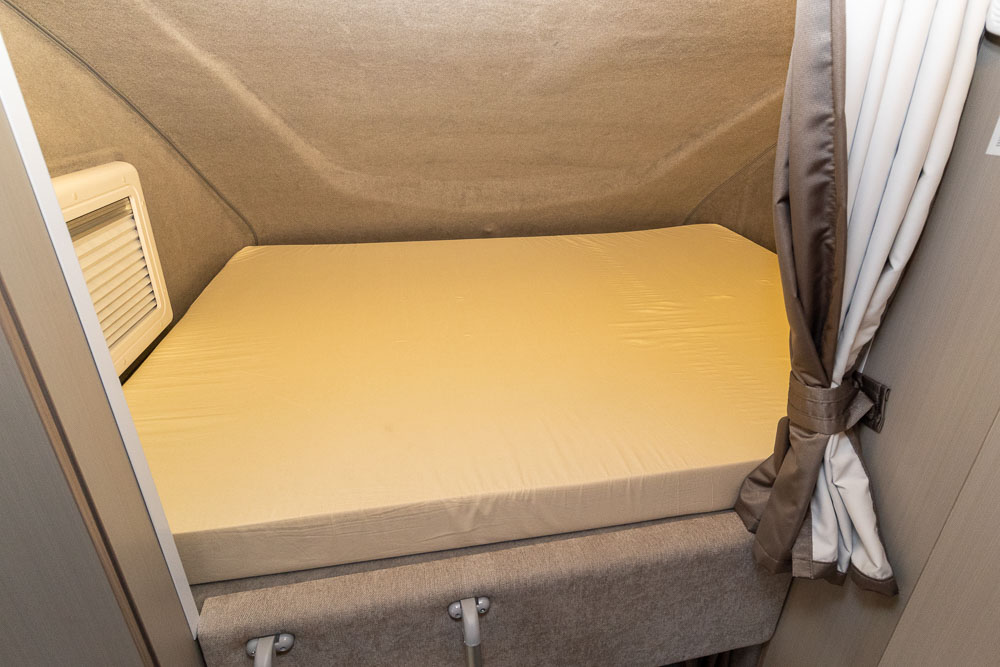

  • Double (HA2, HA3 & HA4)

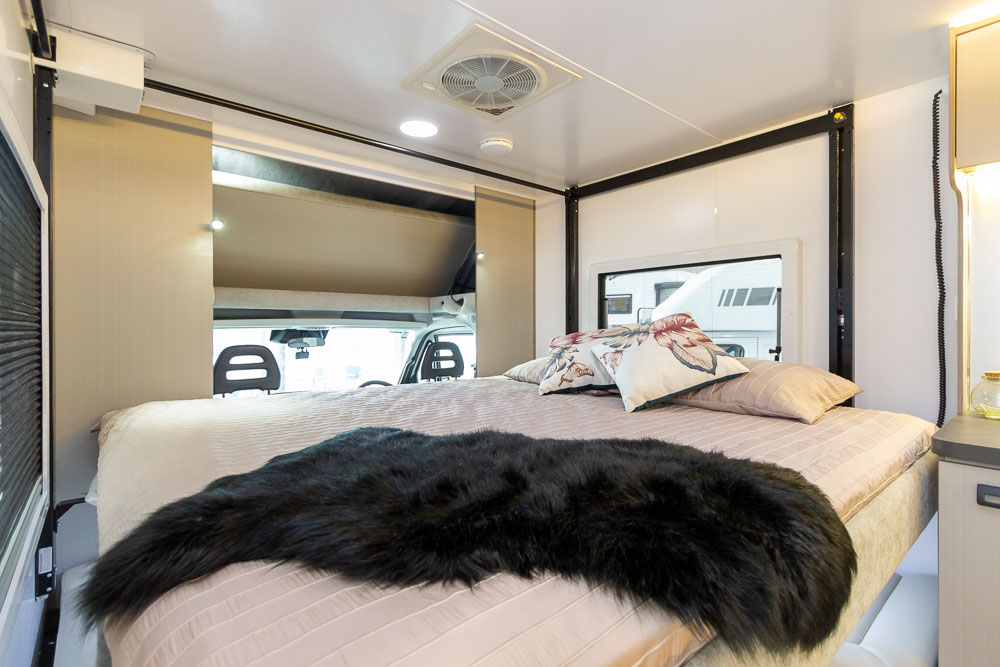

  • King (HA1)

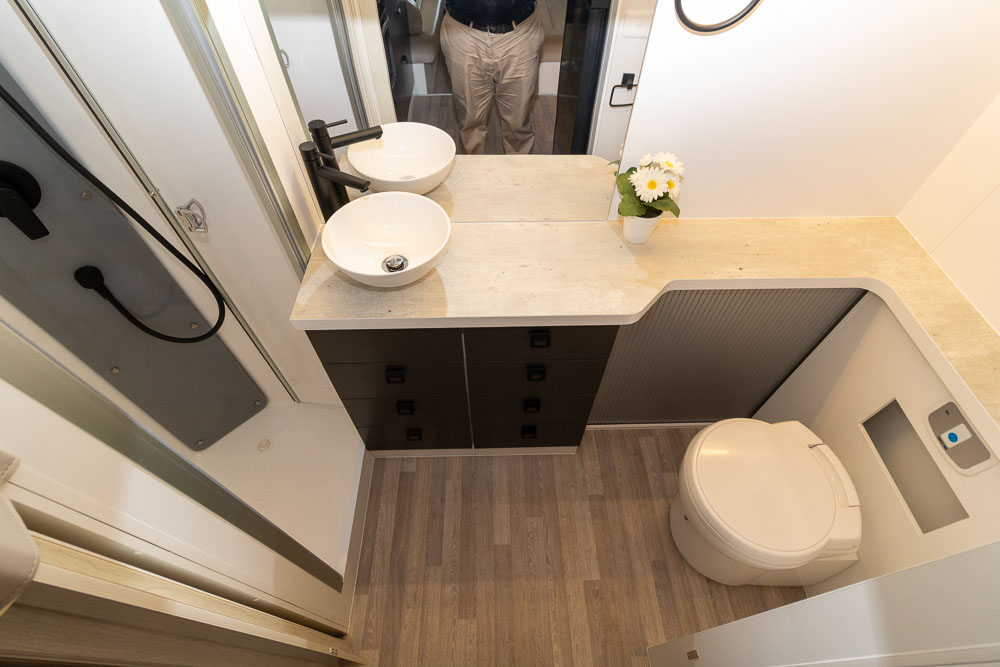

  • Bathroom Vanity Sink (HA1, HA2 & HA4)
  • External Gas Bayonet
  • External Mains City Water

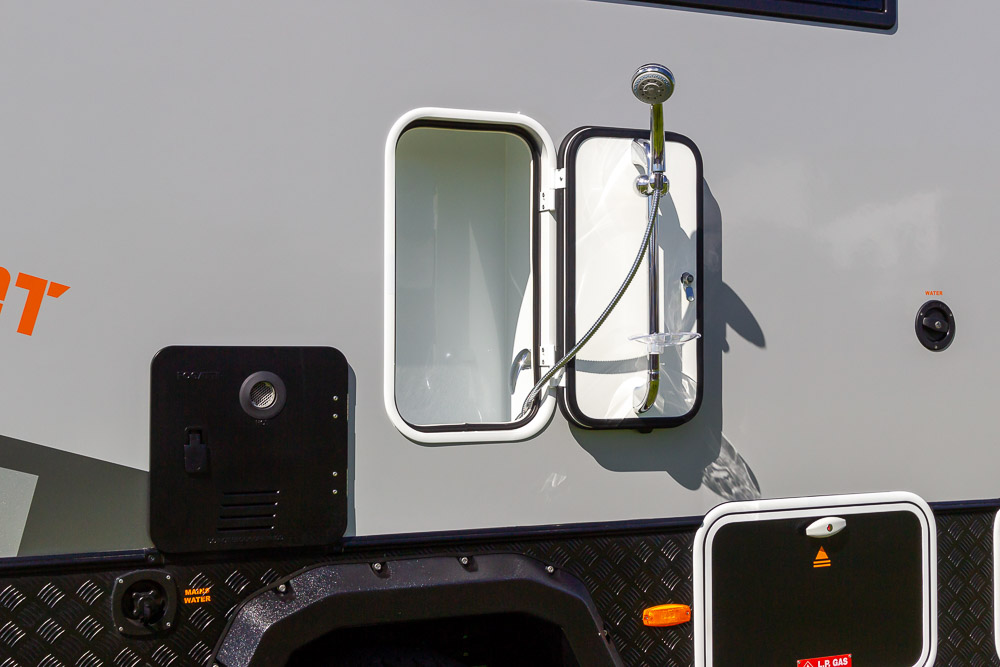

  • External Shower
  • External Water Filler
  • Flow Meter For Fresh Water
  • Gas Bottles 4kg 2
  • Instantaneous Gas Hot Water Service

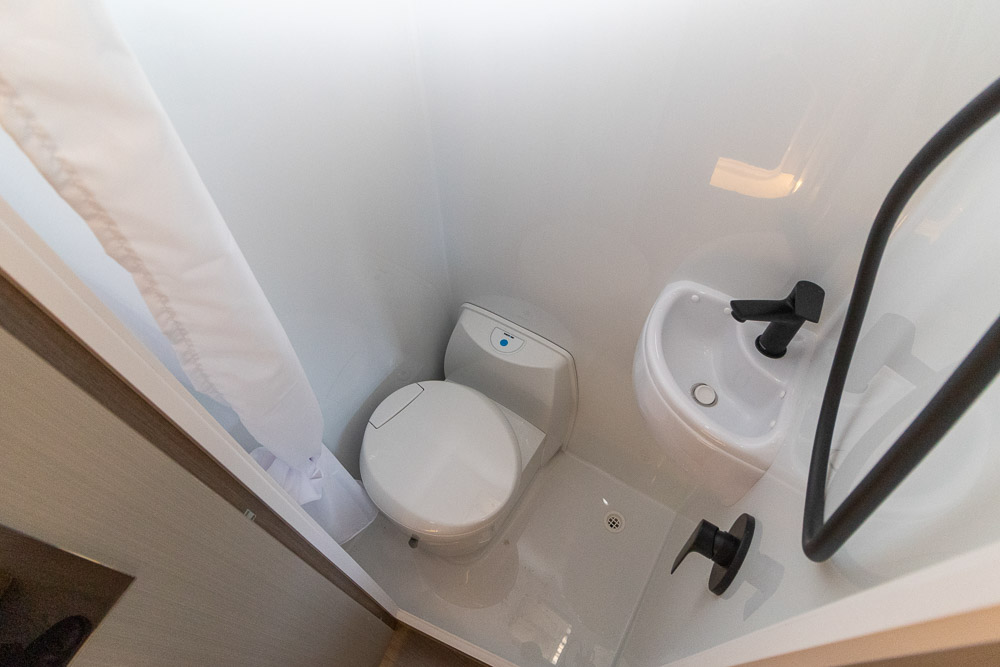

  • Toilet Ceramic (HA1, HA2 & HA4)
  • Toilet (HA3 only)
  • Water Pump
  • Tank Fresh
HA1 - 400 Lt
HA2 - 200 Lt
HA3 - 150 Lt
HA4 - 200Lt
  • Tank Waste
HA1 - 100 Lt
HA2 - 100 Lt
HA3 - 50Lt
HA4 - 100 Lt
  • Fire Extinguisher
  • Internal Carbon Monoxide Alarm
  • Internal Gas Detector Alarm
  • Internal Smoke Alarm
  • Internal Step Carpet Mat Sunliner
  • Cabin Seat Trim Inserts (HA1, HA2 & HA4)

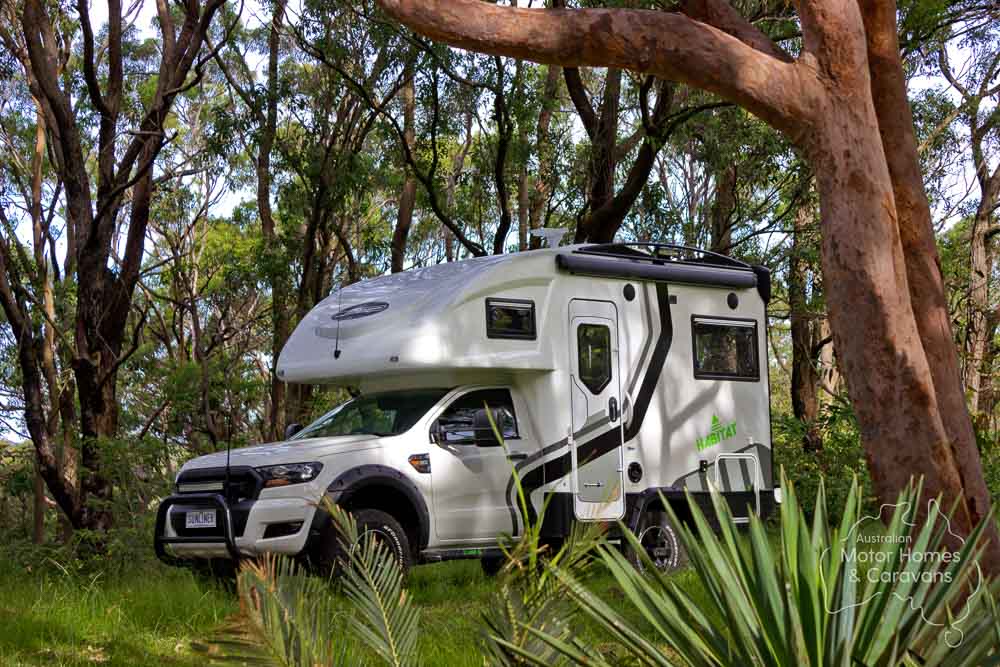

Ford Ranger 4x4

Available on the HA3 model.

  • Engine: 3.2L TD
  • Power (hp/kw): 147
  • Torque (Nm): 470
  • GVM (kg): 3200
  • Front Axle Capacity: 1480
  • Rear Axle Capacity: 1850
  • Gear: 6 Speed Auto
  • Fuel Tank Capacity (Litres): 80
  • Driven Wheels: Front & Rear
  • Tyre Size: 255/70R16
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years / Km's): 3 / 100,000

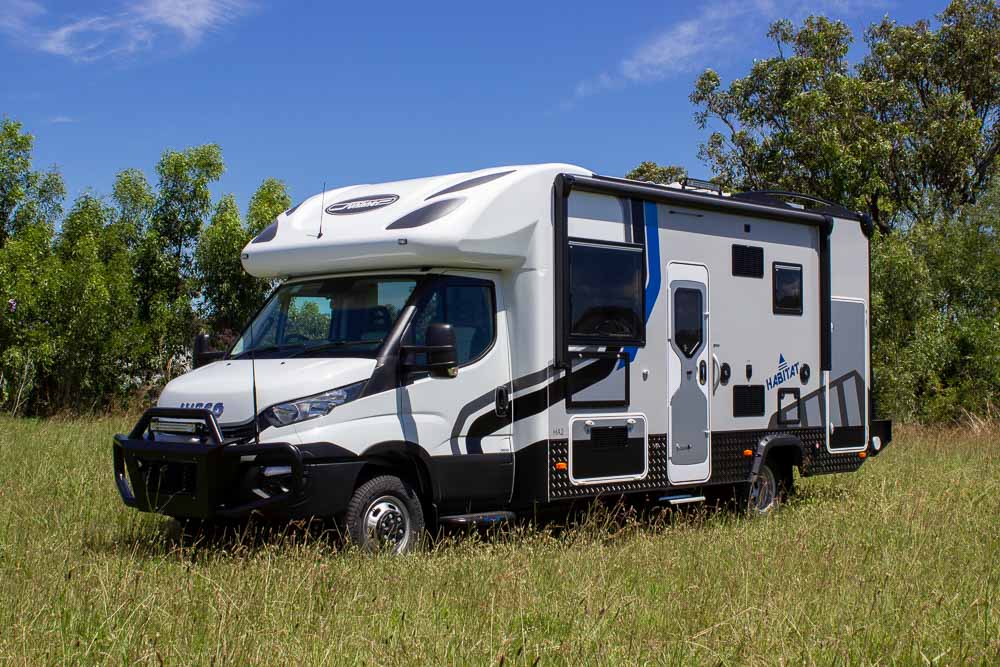

Iveco Daily 50C17

Available on the HA2 model.

  • Engine: 3.0 Turbo Diesel
  • Power (hp/kw): 170 / 125
  • Torque (Nm): 430
  • GVM (kg): 4495 / 5200
  • Front Axle Capacity: 2100
  • Rear Axle Capacity: 3700
  • Gear: 8 Speed Automatic
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: Rear Dual
  • Tyre Size: 195/75R16
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years / Km's): 3 / 200,000

Iveco Daily 70C17

Available on the HA1 model.

  • Engine: 3.0 Turbo Diesel
  • Power (hp/kw): 170
  • Torque (Nm): 400
  • GVM (kg): 7000
  • Front Axle Capacity: 2500
  • Rear Axle Capacity: 5350
  • Gear: 8 Speed Automatic
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: Rear Dual
  • Tyre Size: 225/75R16
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years / Km's): 3 / 200,000

Mercedes Benz Sprinter 519 (4x4)

Available on the HA4 model.

  • Engine: 3.0 V6 TD
  • Power (hp/kw): 190 / 140
  • Torque (Nm): 440
  • GVM (kg): 4490 / 5000
  • Gear: 7 Speed Auto
  • Fuel Tank Capacity (Litres): 100
  • Driven Wheels: All (4 x 4)
  • Ani-Lock Brakes (ABS): Std
  • Traction Control: Std
  • Stability Control: Std
  • Roadside Assistance (Varying Duration): Std
  • Warranty Period (Years / Km's): 3 / 200,000

* Due to continuous improvement, the specifications listed above may vary and are subject to change without notice.
