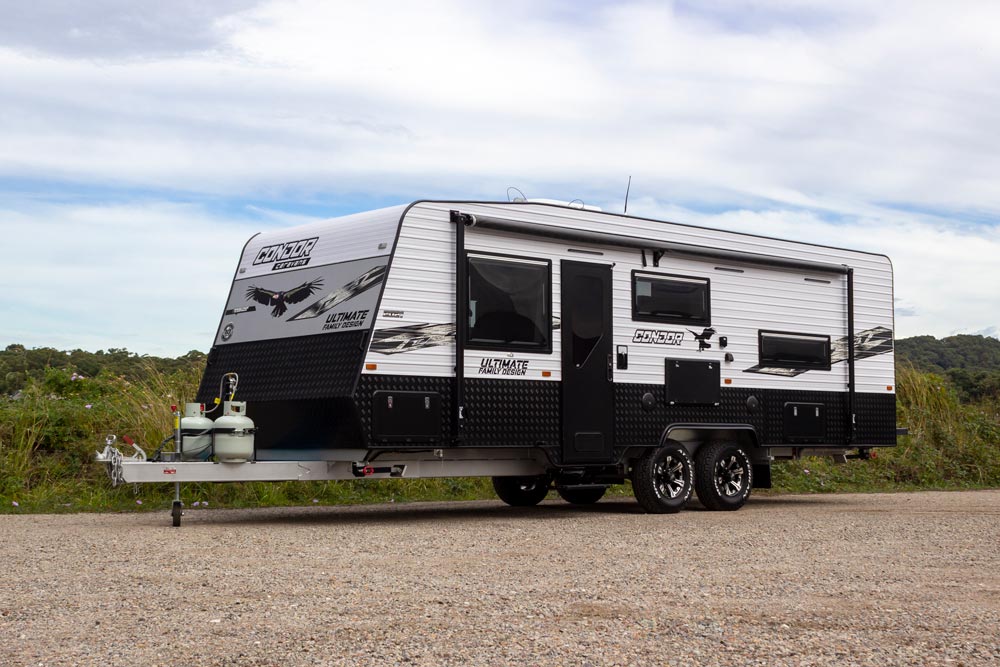

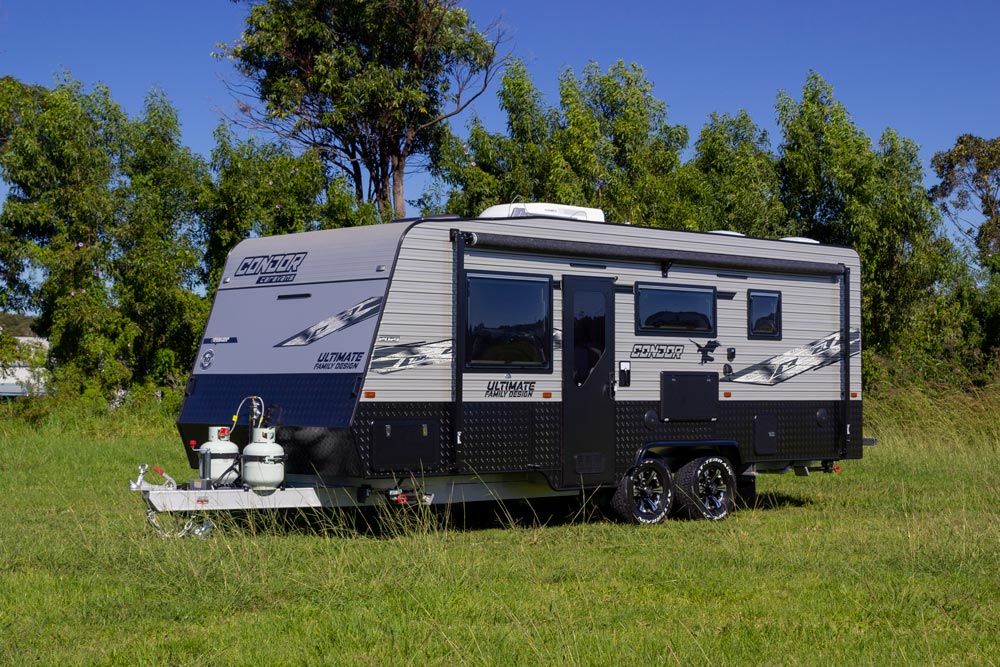

The Ultimate Family range from Condor Caravans offers three unique layouts, suitable for the entire family, at three different length, 21ft, 23ft and 24ft. Coming equipped with bunk beds, the Condor Ultimate Family will suite the whole family for life on the road.

The Ultimate Family model from Condor Caravans offers two floor plans at two different length. Explore the range below and give our friendly caravan sales team a call on (02) 4948 0433 if you have any questions. Alternatively, send us an email by clicking on the Make Enquiry button.


Ultimate Family Floor Plans, Videos & 3D Tours

Ultimate Family Floor Plans


click on a floor plan to enlarge

Ultimate Family Video


Ultimate Family Virtual Tour

click below to expand and minimise each virtual tour.

Ultimate Family Specifications

Click to expand and minimise.

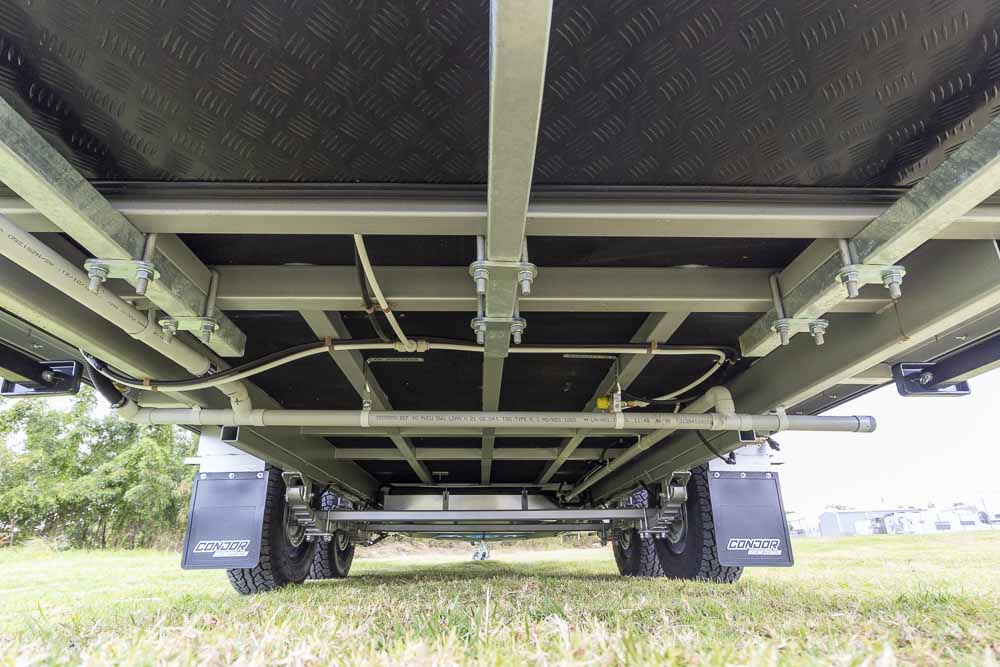

  • 6″ G&S Double Boxed Chassis
  • 6″ A-Frame (With A-Frame Mesh)
  • 235 / 15″ all terrain tyres & rims
  • Rocker Suspension
  • Electric brakes to all wheels with breakaway unit
  • 50mm coupling with handbrake
  • 15″ alloy rims and tyres
  • 3 arm bumper for extra strength (80kg Rating)
  • 1 x spare tyre 15″ matching alloy
  • 2 x 95 litre water tanks

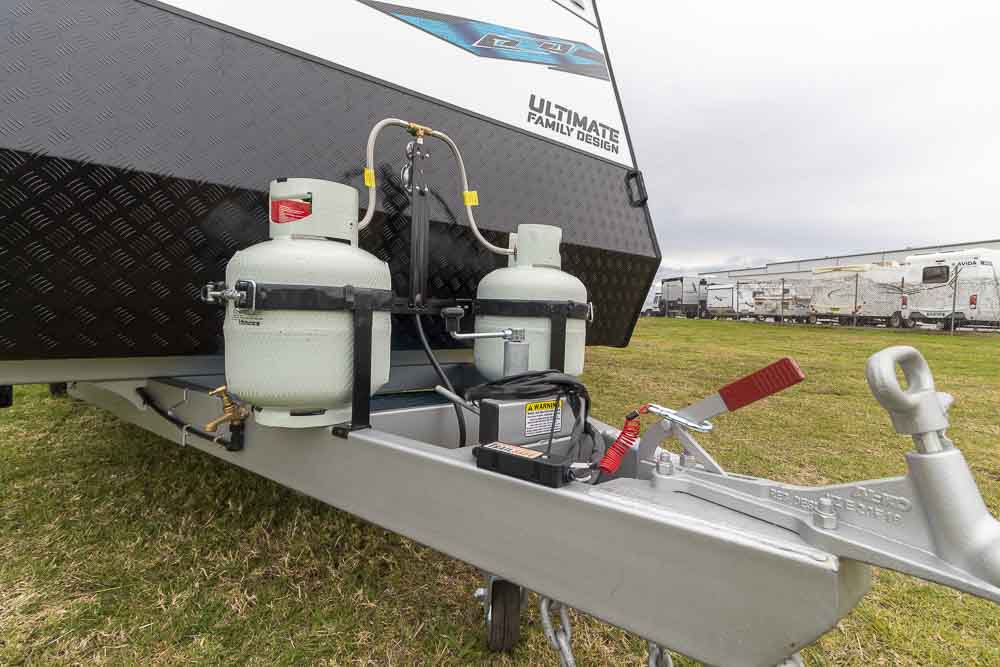

  • 2 x 9kg gas bottles (Full)
  • Jacking points on chassis

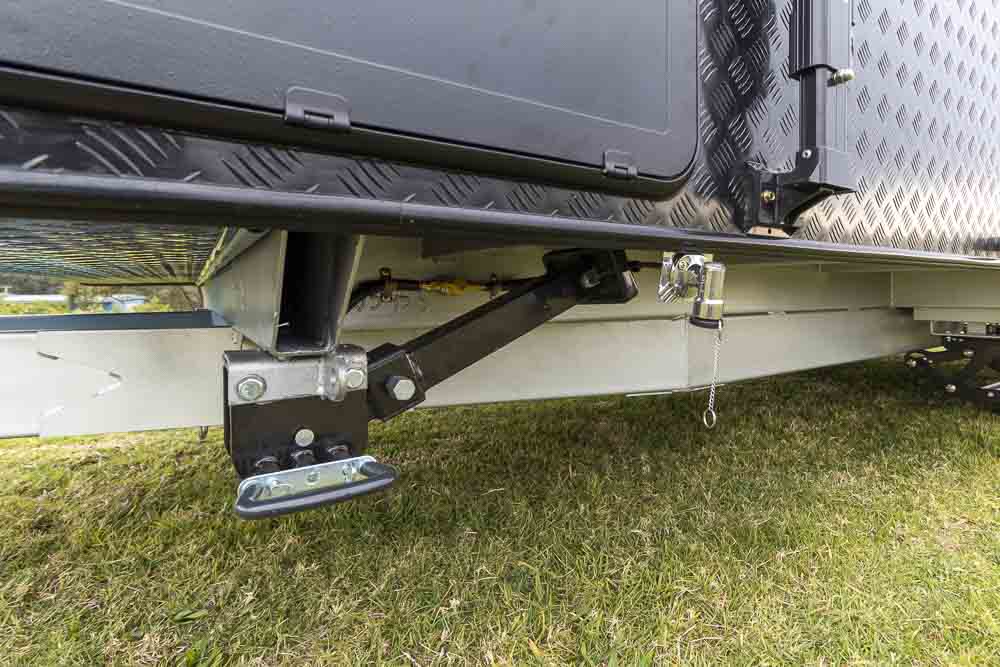

  • Drop down legs
  • 12 pin flat trailer plug with fridge option on 12v
  • Anderson plug for accelerated charging

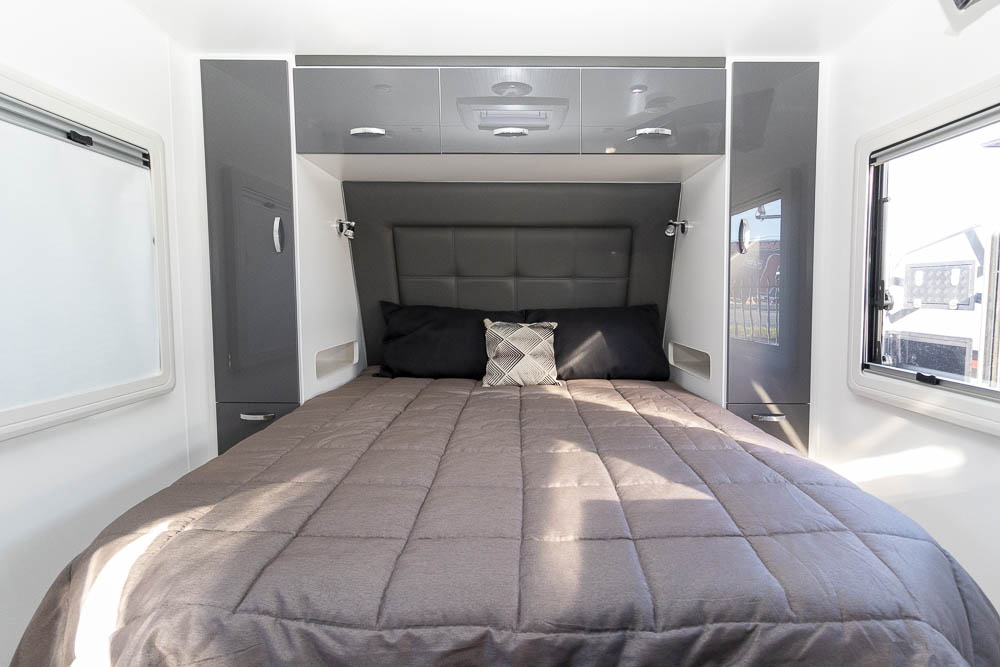

  • RV Queen size bed with inner spring mattress (6’2ft x 5ft – provision for 8” bolster)
  • Internal LED lights

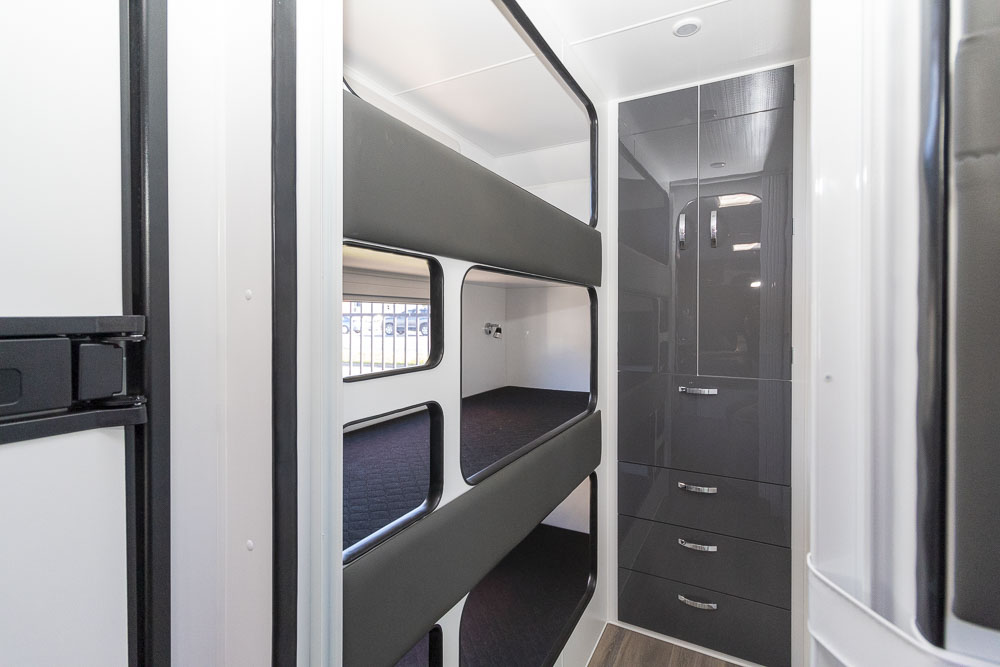

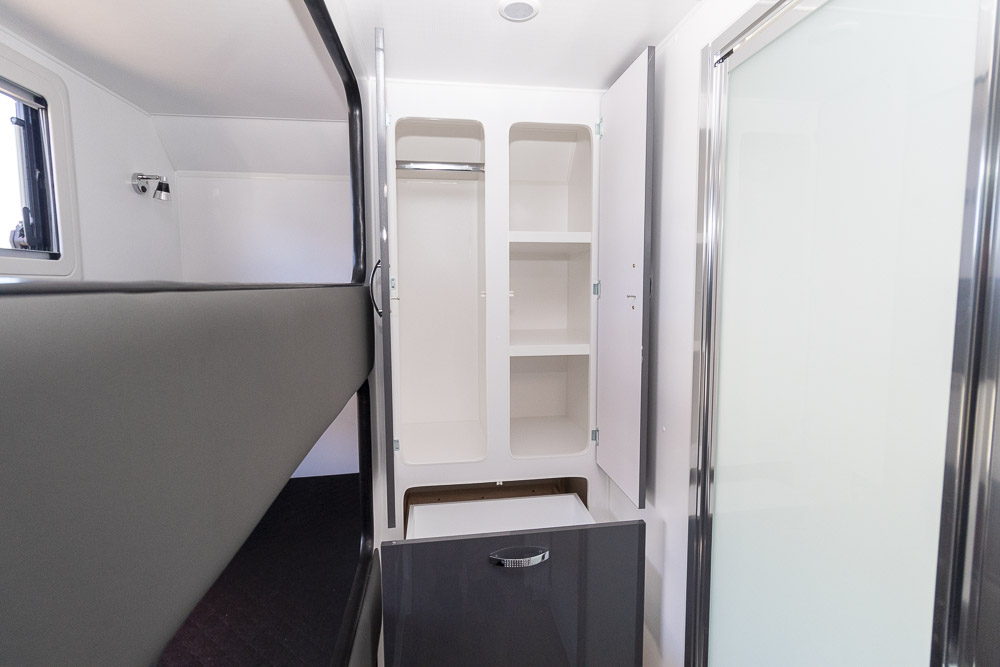

  • 2 or 3 bunk bed option (6’2” x 2’2”)
  • LED touch lights to all beds and dinette
  • Full ensuite with separate shower & toilet
  • Bedroom robes

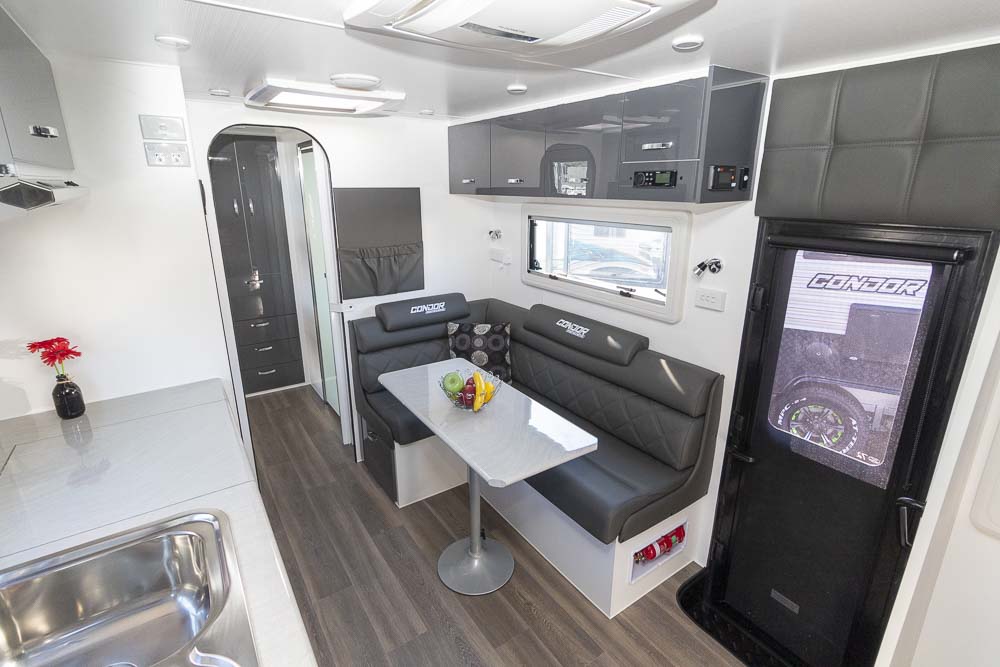

  • L-shape seating in soft vinyl
  • Lift up queen bed on struts with underneath storage
  • Dometic double glazed windows with inbuilt privacy & fly screens

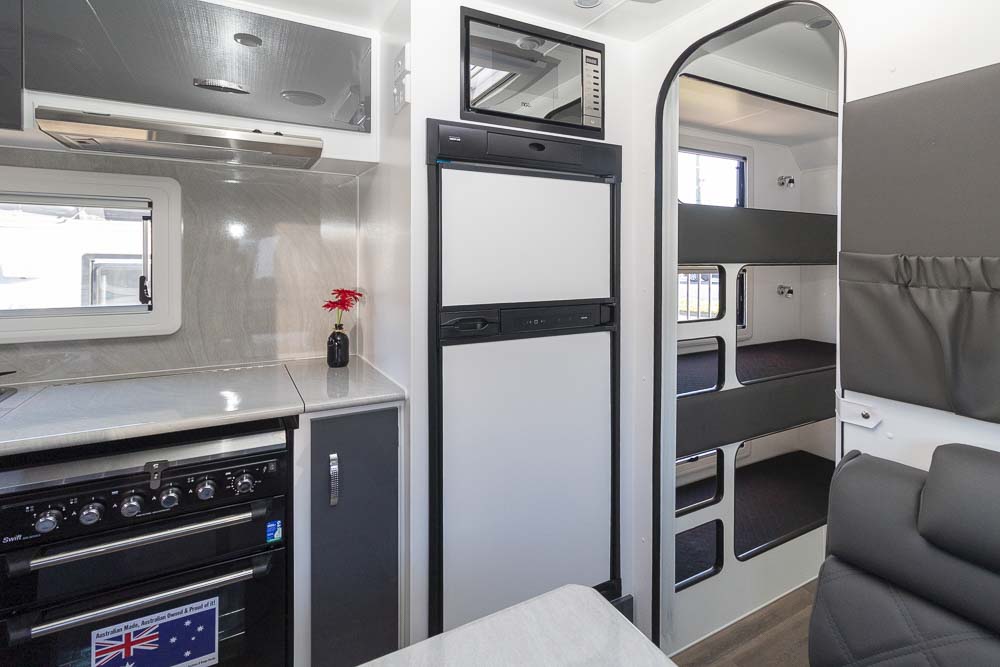

  • 184 litre Thetford AES 3 way fridge/freezer
  • 24” TV/DVD Player Combo
  • TV swivel bracket
  • 2 x Water tank gauges

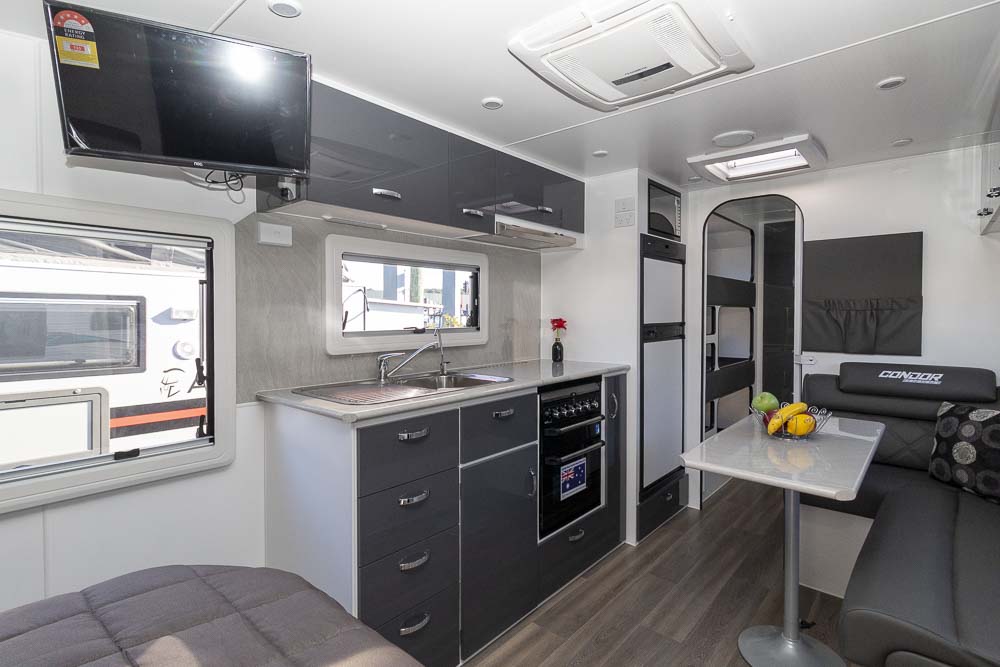

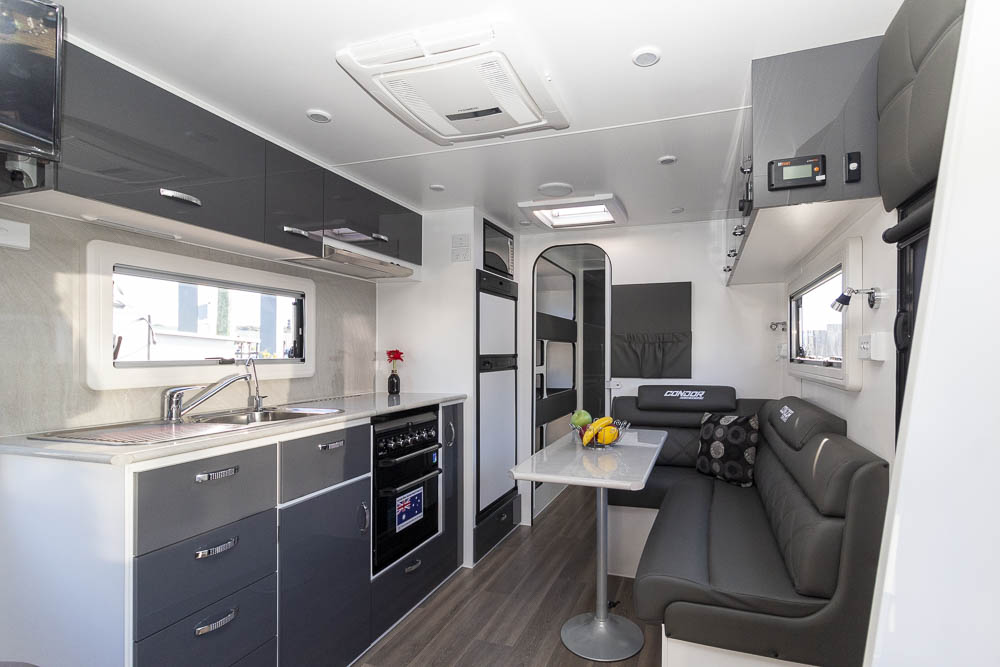

  • Fully integrated kitchen with ball bearing runner drawers
  • Laminated bench tops
  • Gas strut cupboards
  • Smoke detector and fire extinguisher
  • Bathroom pack (towel rail & toilet roll holder)
  • Slide Out Pantry

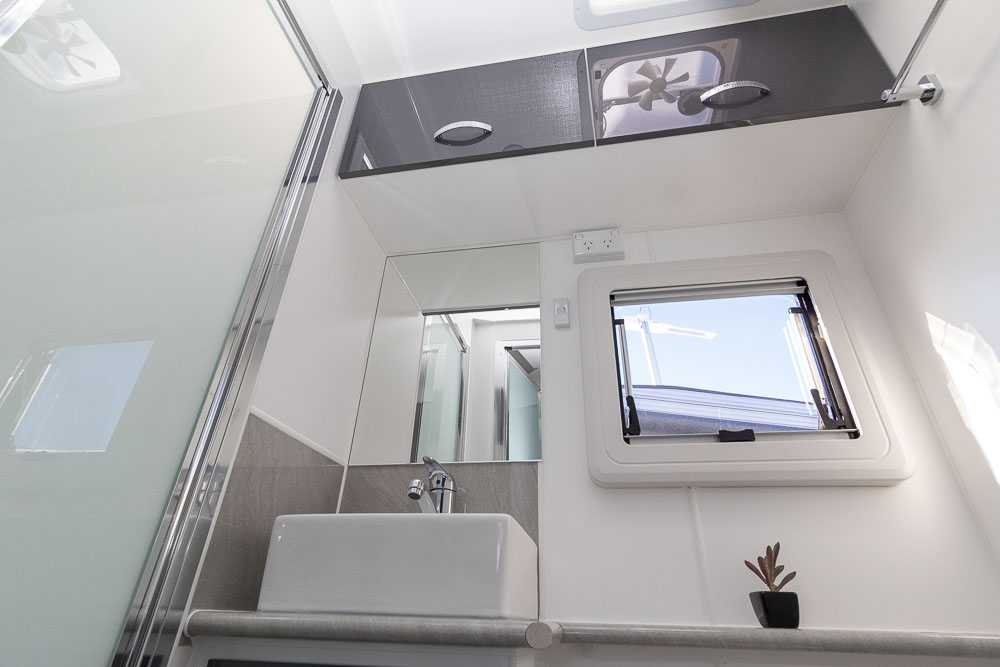

  • Ceramic ensuite vanity basin
  • Queen Bed Side Nooks
  • Internal Hatch (Only available in 2 bunk option)
  • 17ft Aussie Traveller roll out awning (with centre support bracket)
  • External speakers
  • Aussie Traveller triple lock door with fly screen
  • External 240V point
  • 120w Solar Panel
  • External 12V point

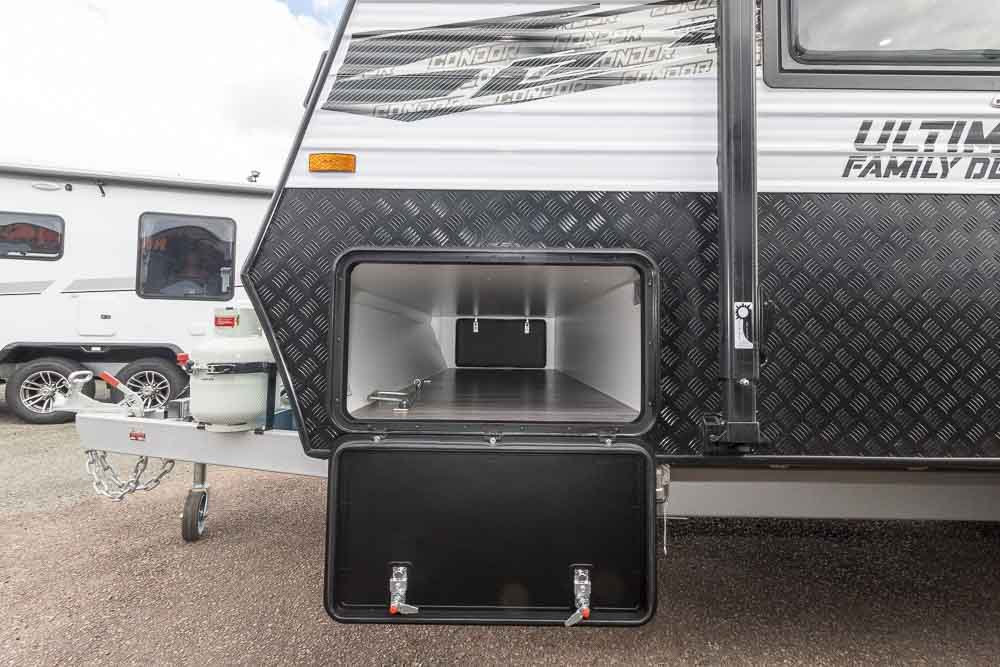

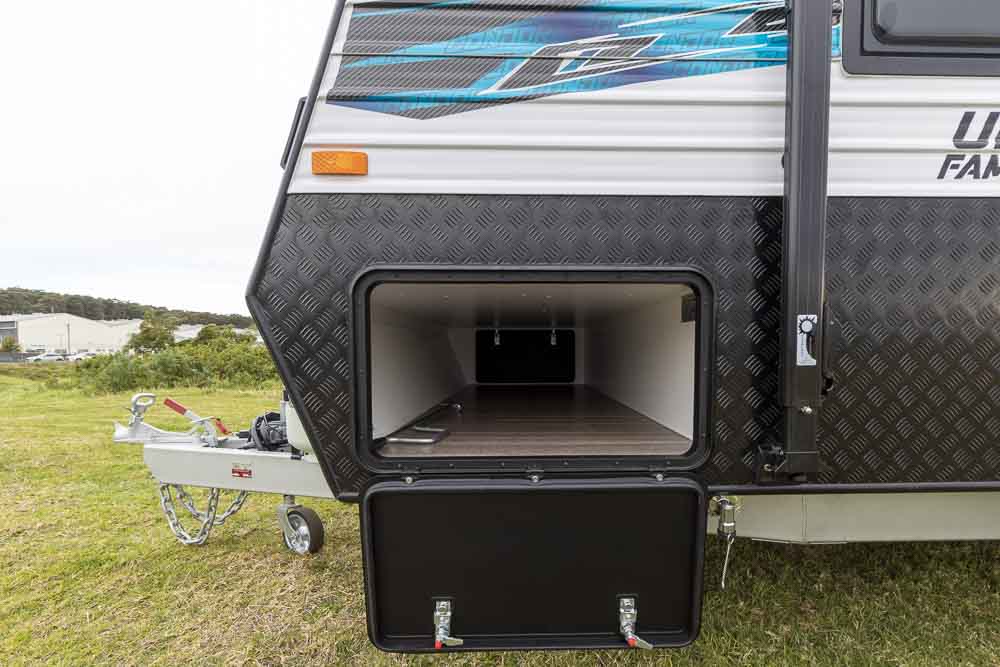

  • Full tunnel boot (with LED lighting)
  • Jockey Wheel
  • 28 Litre Swift gas & electric hot water service
  • Mud Flaps
  • Safety Dave reverse camera with 6” monitor
  • 2 x Safety Chains

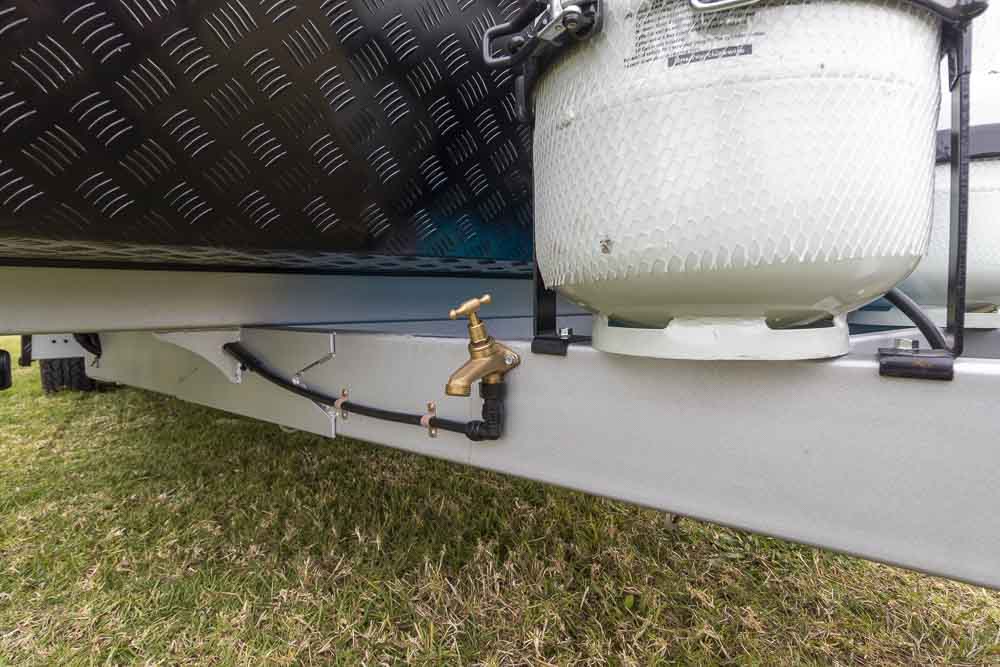

  • Tap on A-frame
  • External door handle light
  • Double glazed windows
  • Lockable water filler
  • 2 x Heki roof hatch with LED’s
  • Mains pressure inlet
  • External picnic table
  • Waste water to common outlet
  • Wineguard Antenna
  • Provision for a bike rack
  • External Gas Bayonet

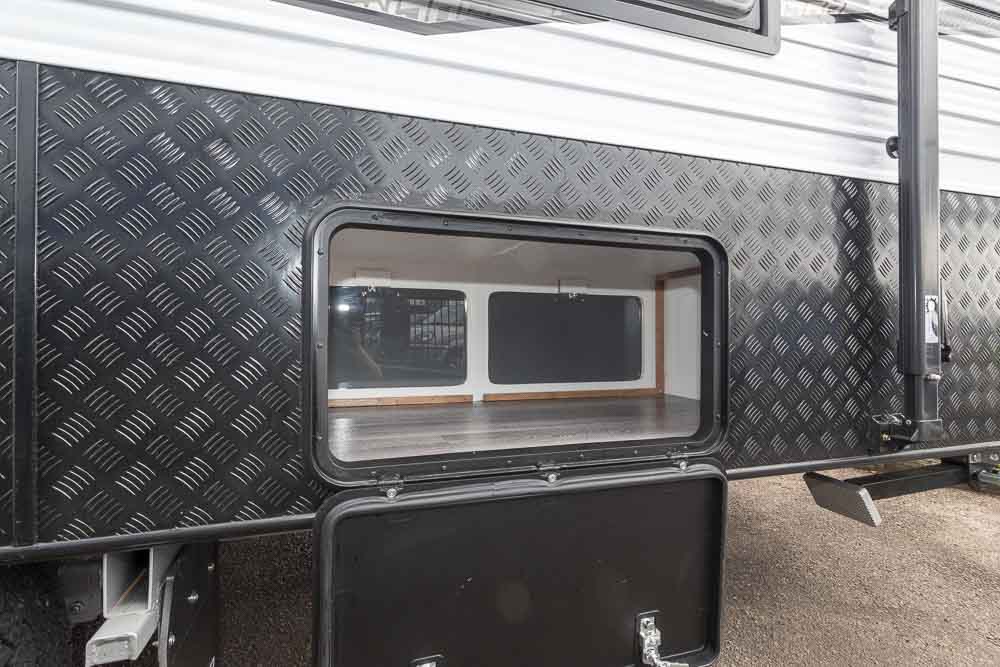

  • Outside hatch (only available in 2 bunk option)
  • 2 x External LED lights
  • LED tail lights
  • 2 degree fall roof with aluminium cladding on top
  • No more than 11” spacing between frame
  • 560mm high black checker plate
  • 12mm marine ply floor (membrane coated)
  • Double ribbed extra strong aluminium cladding
  • 3.2mm white ply
  • Fully installed
  • C & C cut facial furniture
  • Aluminium H frame to A/C for added strength
  • One piece moulded shower
  • Meranti timber frame – all sides 42mm
  • All furniture stapled and screwed for extra strength

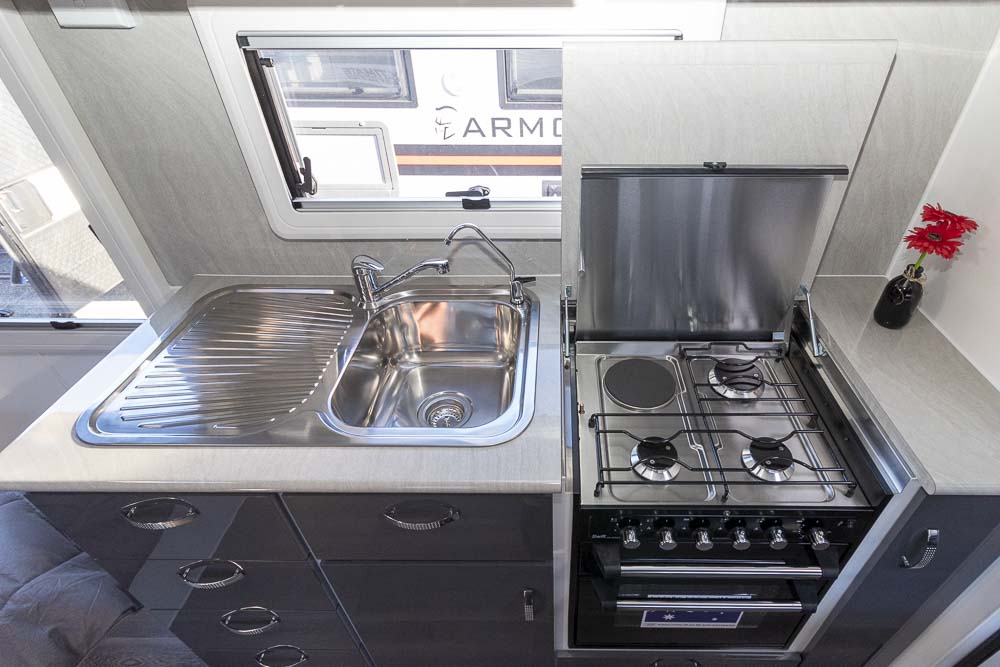

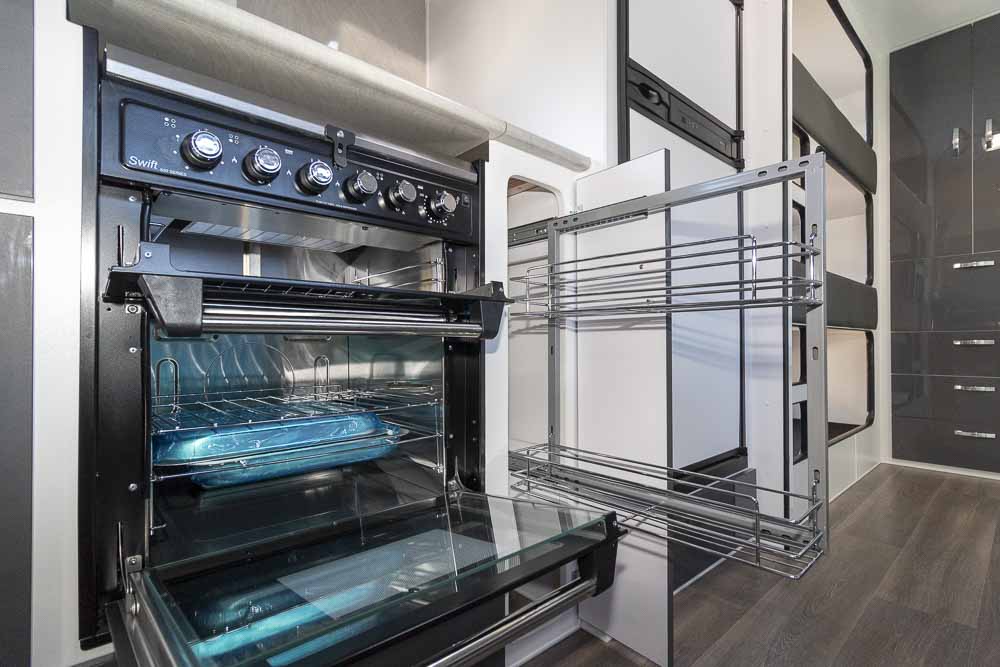

  • Full Swift oven 3 gas & 1 electric stove top plus grill
  • 12V Water pump
  • 12V Swift range hood with light and fan
  • 12V Master switch
  • Microwave – Litre
  • 2 x 12v exhaust fans
  • 184 litre Thetford AES 3 way fridge/freezer
  • Safety Dave reverse camera with 6” monitor
  • NCE DVD / multimedia player receiver & bluetooth
  • Thetford swivelling toilet & cassette
  • IBIS 4 reverse cycle A/C whisper quiet with cabin climate control & remote
  • 2 x 95 litre water tanks
  • Power points throughout
  • Tap on A-frame
  • 1 x 100 amp deep cycle battery (with 15amp battery charger)
  • 28 Litre Swift gas & electric hot water service
  • 1 x 120w roof mounted solar panel
  • Stainless steel sink with flick mixer tap (filtered water)
  • 30amp solar regulator with digital battery monitor display
  • 2 x Lockable water fillers
  • 12 pin flat trailer plug with fridge operation on 12v
  • Mains pressure inlet
  • Anderson plug for accelerated charging
  • Waste water to common outlet
  • 12V / usb points
  • 2 X 120W Solar
  • External chassis mounted battery boxes
  • 2 x 100amp hour batteries
  • 245 All terrain tyres
  • ALKO independent suspension with shockers & coils
  • 16” Rims
  • 2” Riser
  • 2 x Jerry can holders
  • External pull out step
  • DO35 coupling

* Due to continuous improvement, the specifications listed above may vary and are subject to change without notice.
